Error:-User certificate installation failed Oracle Wallet Manager

Feb 3, 2017

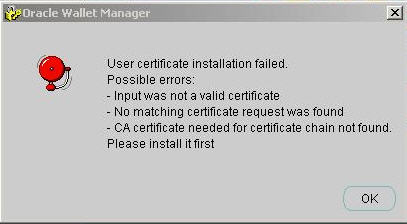

When trying to install an SSL certificate with Oracle wallet manager, you receive the following error:





Cause

The following issues can cause this error:

  • The wallet is missing the correct root certificate
  • The wallet is missing the correct intermediate certificate
  • There is no matching certificate request found
  • The SSL certificate was signed using the SHA2 (SHA-256) Signature Algorithm

Solution

  1. Troubleshooting a missing Root or Intermediate CA:
    • To resolve this issue, download and install the  Root and Intermediate Certificate Authority (CA) Certificate.
  2. Troubleshooting a Certificate Mismatch:
    • If the correct Root and Intermediate CA have been imported and the error continues, more than likely the issue is due to a certificate request mis-match.
    • In order to resolve this, the correct certificate request must be located to install the corresponding certificate.


NOTE: If this is not possible, a new Wallet should be created along with a new Certificate Signing Request.



Troubleshooting an SSL Certificate signed using the SHA2 (SHA-256) Signature Algorithm

Oracle Wallet Manager 10.x.x.x does not support SSL certificates signed with a SHA2 Signature Algorithm.  In order to support SHA2 certificates, you will need to upgrade to Oracle Wallet Manager 11.2.0.1.
